10KW 5KW Off Grid Energy Storage LiFePO4 Solar Energy Storage System For House

Place of Origin : china

MOQ : negotiated

Price : negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : negotiated

Battery Type : LiFePO4

Cycle life : 6000 Times

Warranty : 5 or 8 Years

Nominal Voltage : 48V/51.2V

Nominal Energy : 14.33kWh

Weight : 127Kg

Contact Now

10KW 5KW Off Grid Energy Storage LiFePO4 Solar Energy Storage System For House

Nominal Voltage	51.2V
Nominal Capacity	280Ah
Nominal Energy	14.33kWh
Voltage Window	45.0~58.2V
Rated Charge Current	50A
Max.Charge Current	100Aor200A
Rated Discharge Current	50A
Max.Discharge Current	100Aor200A
Max.DischargeD CPower	5kWor10kW
Operating Temperature	0℃~45℃(Charge)-20℃~50℃(Discharge)
Recommended DOD	90%
Communication	CAN2.0/RS485/RS232
Cycle Life	＞5000(224Ah@25℃,0.5C,90%DOD)
IPGrade	IP20orIP54
Installation	Floormount
Dimension	W500mmxD250mmxH800mm
Terminal Type	Quickplugconnector
Weight	~127kg
Warranty	5or8Years
Stateindicator	SOCanderrorstatus
Maximum Parallel Number	15
Communication Protocol	Deye/MUST/Growatt/Megaevo/KEHUA/SRNE/Sunicorn/SOFAR

Company Profile

FAQ

1.Which inverters can your lithium batteries be compatible with? A: Our lithium batteries can interact with different inverters.

2.Do you accept ODM/OEM orders? A: Yes. we can accept OEM/ODM. We can talor the logo and functions as per your requirement

3.Does the battery have remote communication function? A: Yes, Our products have RS232 & 485 communication with PC and smart LCD for monitoring

4.When choosing a storage capacity for a battery, which factors should I consider? A: The storage capacity should be selected depending on the power consumption as well as the installed PV power. Battery storage should follow the below criterias. Not exceed 1.5 kWh per 1kW of PV capacity Not exceed 1.5kWh per 1000 kWh/annual of electricity consumption Be installed only if the PV power exceeds 0.5 kW per 1000 kWh/annual of electricity consumption

5.How much storage capacity of a battery is suitable for my home needs? A: Basically, the storage should be large enough to supply a single-family home with solar power from evening till the next morning. For an average four-person household with an annual energy consumption of about 5000-kWh, a size of 7 kWh is usually sufficient.

Calculation: 5000 kWh / 365 days = 13.7 kWh per day, about 7 kWh of which is for the night

Product Tags:

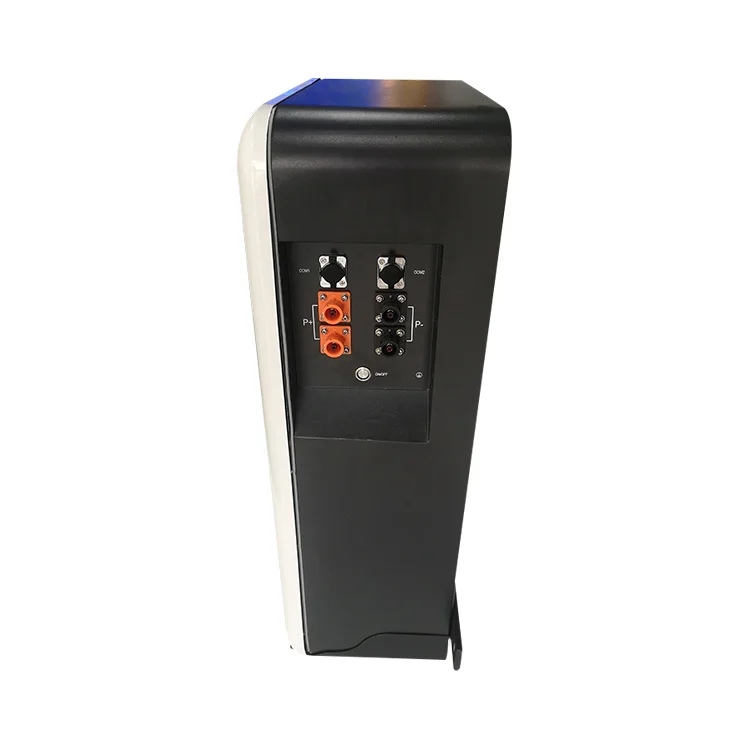

10KW 5KW Off Grid Energy Storage LiFePO4 Solar Energy Storage System For House Images
